9300 E
Port Crane, SENNEBOGEN
PORT CRANE FOR PORT HANLDING UP TO POST-PANAMAX CLASS

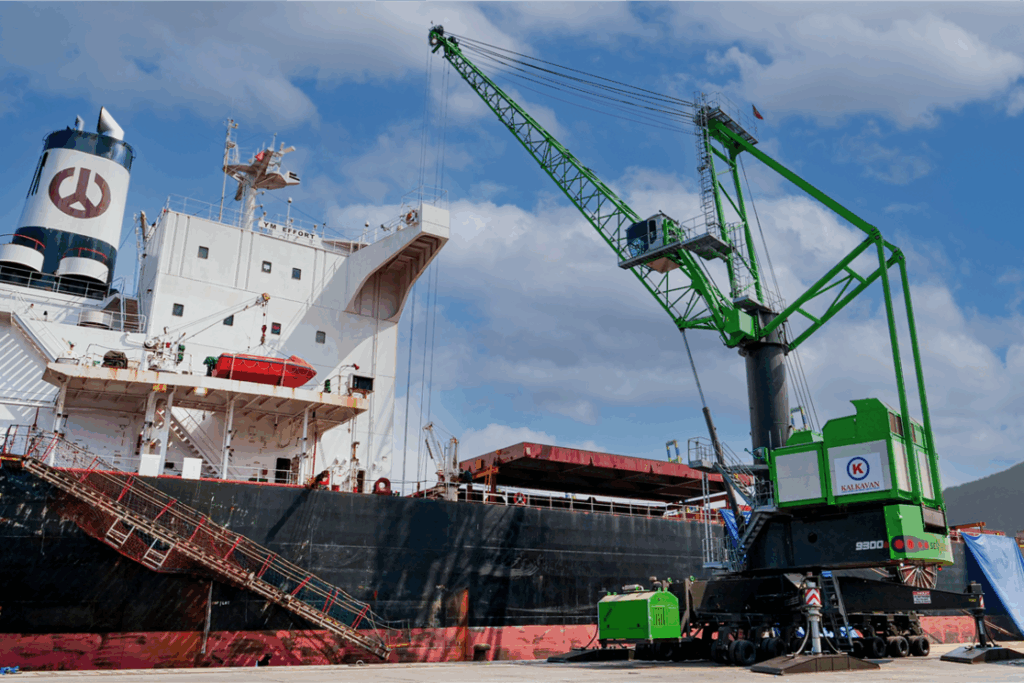

With a load capacity of 90 t at a reach of 19 m, the SENNEBOGEN 9300 can be used for all ship sizes. The port crane loads and unloads ships up to Post-Panamax class. Thanks to its unique Skylift cab adjustment it provides a comfortable and safe access to the optimal working position. The mobile undercarriage with all-wheel steering and 14 wheel sets ensures it is maneuverable and has low ground pressure.
Technical Data
Load capacity 90 t | Hook height 43 m | Diesel Engine 563 kW | Elektric Engine 615 kW |
OTHER MACHINES
YOUR ADVANTAGES
INNOVATIVE PORT HANDLING
- Bulk cargo handling with 4-rope or 2-rope grab, container handling with spreader
- Available with electric drive (615 kW) or diesel engine (563 kW)
- Powerful motor slewing unit (90 t)
- Sophisticated mobility concept: excellent stability and lower ground pressure thanks to even load distribution across 14 wheel sets
BETTER VIEW OF THE PORT
- Safe, comfortable elevation to working height in a matter of seconds
- Work at a viewing height of up to 21.2 meters
- Perfect view into the ship’s hull thanks to custom height adjustment
- Excellent machine maneuverability in the low cab position
SERVICE-FRIENDLY DESIGN
- Walk-in electric and diesel power pack with all hydraulic and engine components
- Clear, clean engine compartment
- Optimized ventilation and filter system, ideal for bulk cargo handling
